Playtower Playset playground Lina

Characteristics playtower Playset playground Lina:

Material:
- 100x100 mm core impregnated pinewood including hot dip galvanized post holders
- Floors and climbing wall made of 17-way glued screen printing plates
or
- Aluminum profile 100x100x4 mm color powder coated bottoms and climbing wall made of PE panels (alternative made of HPL)
- Steel ladder and fire brigade rod made of round tube ø 30 mm galvanized steel
- Roof, fence fields, cover caps, climbing stones and slide made of high-quality polyethylene UV-resistant, 100% dyed through
- All connections in hot-dip galvanized steel
+ Safety rubber tiles fall breaking tiles for under playground equipments are also available as an option in different thicknesses, colors and sizes

Consists of:
1 triple pedestal 212 x 212 cm across the corner with a roof of 150 x 150 cm platform height 150 cm
1 hangar
2 horizontal beams in heights of 100 cm / 120 cm
1 free climbing wall
1 sport rise (mounted)
1 slide, in one piece
1 swing

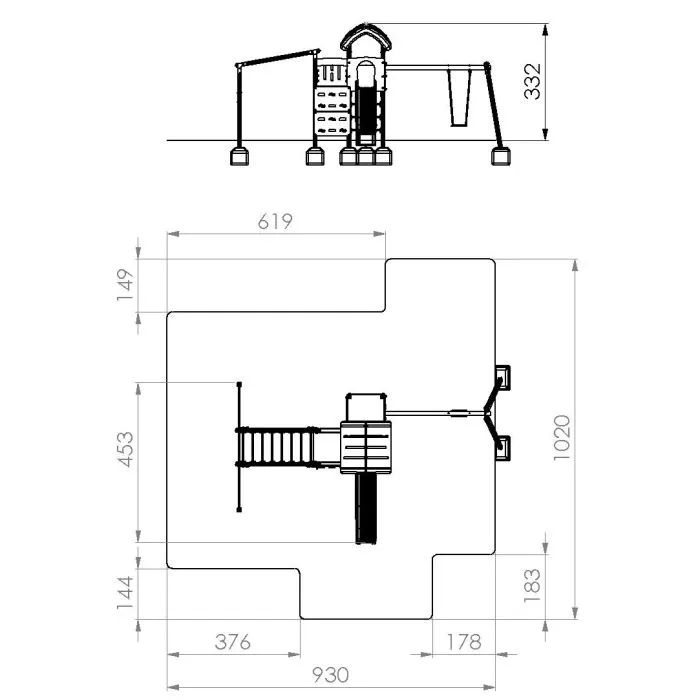

Dimensions:
425 cm wide 735 cm long
Total height 380 cm
free fall height <200 cm

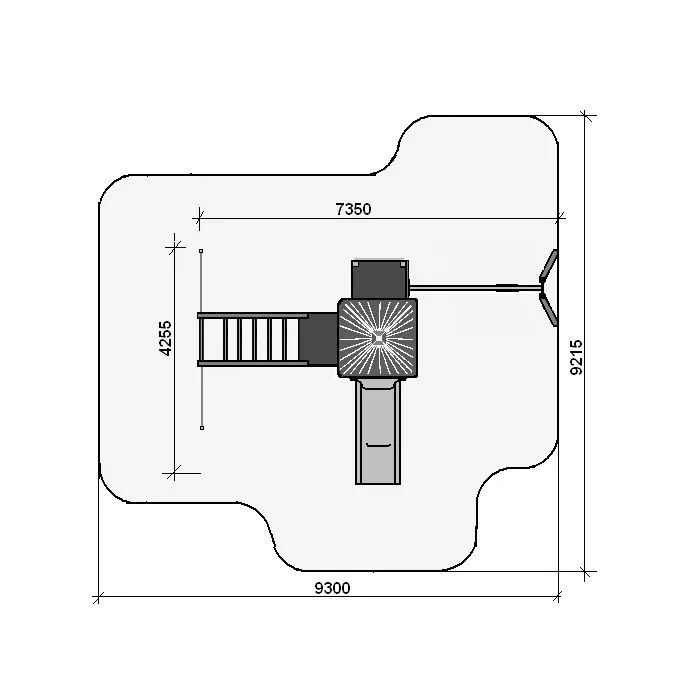

Falling space: 930 x 922 cm

Foundations:
12 foundations 50 x 50 x 50 cm
2 foundations 70 x 50 x 50 cm
1 base 65 x 50 x 40 cm

Concrete approx. 2 m³ C25 / 30 CX2 / XF1

Places of use: nurseries, schools, public playgrounds
