Playtower Playset playground

Tested and manufactured according to EN DIN 1176

Material:
- 100x100 mm core impregnated pinewood including hot dip galvanized post holders
- Thick-walled square steel tube, hot-dip galvanized 100x100 base made of 17-way glued screen printing plate
- Aluminum profile 100x100x4 mm color powder coating optionally red, anthracite or brown PE plate base (alternative HPL)
- Sport take off from round tube ø 30 mm hot-dip galvanized
- Head bar round steel tube ø114 x 3 mm hot dip galvanized
- Fence fields, cover caps and slides made of high quality polyethylene UV-resistant, 100% dyed through
- Rubber safety seat 19x40 cm made of solid rubber with PAH-free steel inlay
- Fully stainless steel swivel hook
- Swivel chains with hot-dip galvanized steel
- All connections in hot-dip galvanized steel

Consists of:
1 tower with roof 106 x 106 cm with roof 150 x 150 cm with rungs, platform height 150 cm
1 slide, platform height 150 cm
1 main beam for 2 swing seats with built-in swing hook
2 standard posts for swing
2 rubber safety seats with 150 cm long chains
+ Safety rubber tiles fall breaking tiles for under playground equipments are also available as an option in different thicknesses, colors and sizes

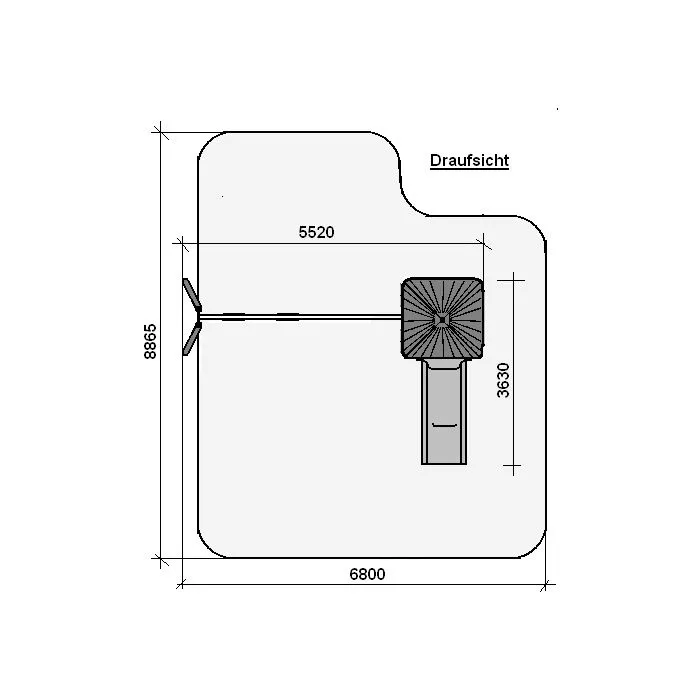

Dimensions:
363 cm wide 552 cm long
Total height 380 cm
Free fall height 150 cm
Stroke area: 887 x 680 cm

Foundations:
4 x foundations 500x500x500
1 x basic 650x400x500
2 x basic 700x500x500

Suitable for: children from 3 to 14 years
Infants only under adult supervision
Locations: daycare centers, schools, public playgrounds
